Magnetic force, magnetic field of circular coils, and intersecting field lines

Question 1

A vertical wire is carrying a current in the upward direction. It is placed in a magnetic field, pointing towards the East direction. Find out the direction of force on the wire.

Accepted Answer

Using Fleming's Left-Hand Rule: - Forefinger (magnetic field) points East. - Middle finger (current) points Upwards. - Thumb (force) points **into the page / Towards North?** Let's check: East is right, Upwards is up $\rightarrow$ Thumb points Into the page (or West/South depending on coordinates). In standard 2D cardinal plane: Current = Up (North), Magnetic Field = East $\Rightarrow$ Force = Into the page.

Question 2

Out of the two current carrying circular coils, coil 'A' has 10 turns while coil B has 15 turns. Which of the two coils will produce a stronger magnetic field at its centre if same current is flowing through both the coils? Explain with reason.

Accepted Answer

Coil **'B'** will produce a stronger magnetic field. Reason: Magnetic field produced by a circular coil is directly proportional to the number of turns ($B \propto N$). Since Coil B has more turns ($15 > 10$), field strength at its center is greater.

Question 3

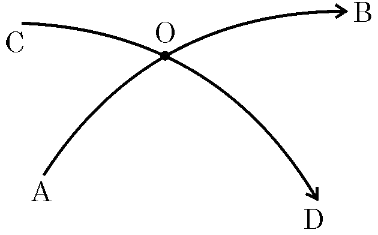

In the given figure, AB and CD are two magnetic field lines intersecting each other at point O. If a compass is placed at point O, what will happen? State your conclusions.

Accepted Answer

The compass needle will get confused/oscillate and cannot point in two directions at the same time. Conclusion: Two magnetic field lines can **never intersect** each other because if they did, the magnetic field at the point of intersection would have two different directions, which is impossible.
